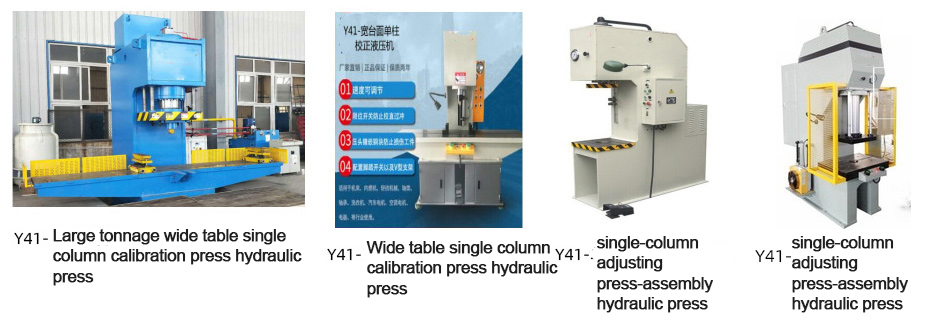

Y41 Single column correction and press mounting hydraulic press

Send Email

Performance characteristics:

This series of hydraulic press has a wide range of versatility and is suitable for the processing and molding of plastic materials, such as extrusion bending, folding, stretching, etc. At the same time, it is also suitable for pressing and molding of various plastic and powder products. In addition, it can also be used for correction, pressing and shaping of products.

Y41 Single column correction and press fitting hydraulic press parameters

Tonnage of single column hydraulic press	unit	Y41-25	Y41-40	Y41-63	Y41-80	Y41-100	Y41-160	Y41-200	Y41-315	Y41-500
nominal pressure	KN	250	400	630	800	1000	1600	2000	3150	5000
Liquid working pressure	Mpa	25	25	25	25	25	25	25	25	25
Maximum stroke of oil cylinder	mm	350	360	300	300	400	400	400	400	500
Press the head to the opening height	mm	500	500	550	550	600	600	600	700	800
Left and right dimensions of workbench	mm	400	450	500	600	600	600	600	600	800
Front and rear dimensions of workbench	mm	400	450	500	500	500	500	500	600	600
Deep throat	mm	200	250	250	250	250	250	250	300	300
Downward speed	Mm/s	16	20	22	22	22	20	20	15	15
return speed	Mm/s	22	25	28	30	30	28	28	27	27
The height of the workbench from the ground	mm	550	550	600	600	600	600	600	600	600
power	KW	4	5.5	5.5	5.5	5.5	7.5	11	11	18.5
Equipment external dimensions	l	700	700	800	800	800	900	900	900	1000
	K	850	900	1000	1100	1100	1100	1200	1300	1300
	H	1500	1600	1750	1800	1850	1900	1900	2000	2000
	machine weight	2000	2500	4800	5000	5500	6000	10000	15000	25000

　　Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
