W24S profile bending machine

Send Email

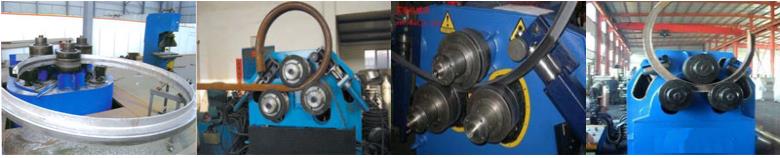

　　The W24S series profile bending machine is a curved downward profile bending machine that can complete the pre bending, rounding, and calibration processes of profiles in one feeding operation. The two lower rollers of the machine are the main driving rollers, or three working rollers can be the main driving rollers. The position of the upper roller is fixed, and the two side rollers move in an arc around a fixed rotation center. It is controlled by hydraulic pressure and displayed by displacement LCD with a display accuracy of ± 0.1mm, which is conducive to controlling the profile forming process; There are roller devices on both sides, which are conducive to ensuring the rolling quality of asymmetric cross-section profiles. This machine has an advanced structure and full functions, and is currently an advanced profile forming equipment at home and abroad. It can be placed vertically or horizontally according to the user's usage situation.

　　Main technical parameters of W24S profile bending machine

Technical Parameter		W24S
Technical Parameter		6	16	30	45	75	100
Maximum bending section modulus of profiles		6	16	30	45	75	100
Rolling speed（m/min）		6				5
Yield limit of profiles（mpa）		△S=250
	Maximum cross-section mm	40×5	70×8	80×8	90×10	100×10	120×12
	Minimum bending diameter mm	800	1000	1200	1500	2000	2500
	Minimum cross-section mm	20×3	30×3	35×3	36×5	38×4	40×5
	Minimum bending diameter mm	400	550	560	600	600	720
	Maximum cross-section mm	50×5	80×8	90×10	100×10	120×12	140×16
	Minimum bending diameter mm	800	1000	1100	1300	1600	1800
	Minimum cross-section mm	20×3	30×3	35×3	36×5	38×4	45×5
	Minimum bending diameter mm	400	550	500	600	700	760
	Channel steel model	8	12	16	20	25	28
	Minimum bending diameter mm	600	800	800	1000	1100	1700
	Channel steel model	8	12	16	20	25	28
	Minimum bending diameter mm	700	900	1000	1150	1600	1700
	Maximum cross-section mm	100×18	150×25	180×25	200×30	220×40	250×40
	Minimum bending diameter mm	600	700	800	900	1000	1200
	Maximum cross-section mm	50×12	75×16	90×20	100×25	110×40	120×40
	Minimum bending diameter mm	500	760	800	1000	1100	1300
	Maximum cross-section mm	42×4	76×4.5	89×5	89×8	114×5	159×5
	Minimum bending diameter mm	500	750	900	900	1200	2000
	Maximum cross-section mm	38	52	62	75	85	90
	Minimum bending diameter mm	450	600	600	800	1000	1100
	Maximum cross-section mm	45×3	60×4	70×4	80×6	90×8	100×10
	Minimum bending diameter mm	750	900	1000	1200	1600	2000
