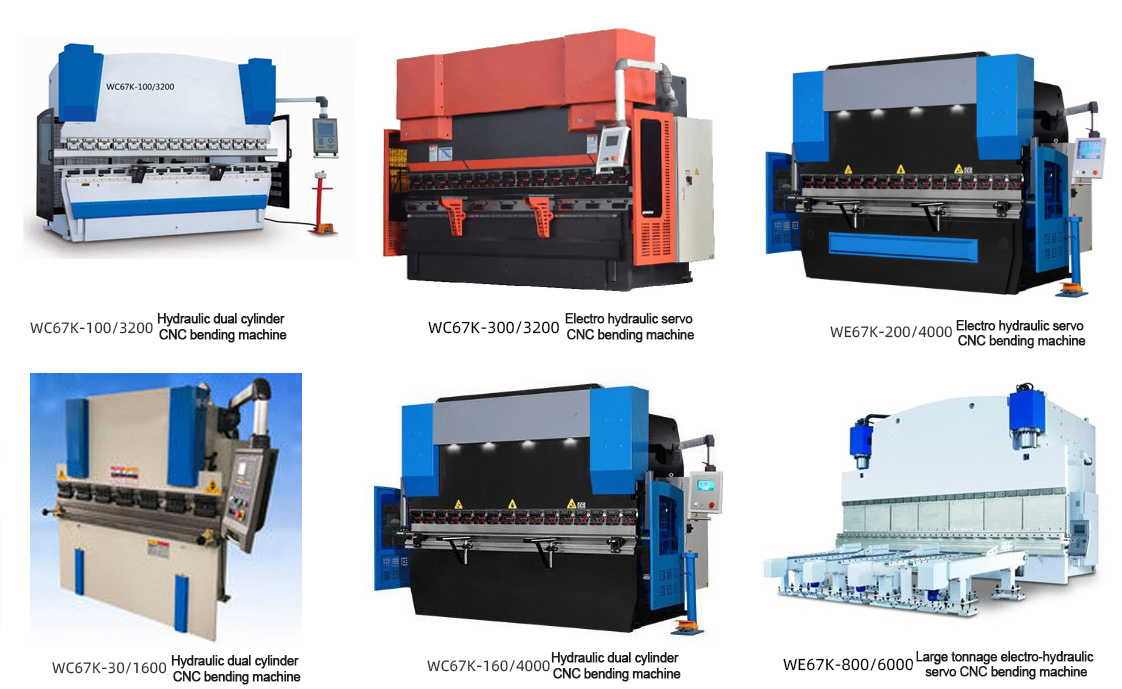

WE67K-800/6000 large tonnage electro-hydraulic servo CNC bending machine

Send Email

　　WC67K液压双缸数控折弯机主要参数：

Specification and model	nominal pressure(KN)	Workbench length(mm)	Distance between columns(mm)	throat depth(mm)	Height of slider and workbench closure(mm)	Slide stroke(mm)	power(kw)	External dimensions 长×宽×高(mm)	Machine weight(kg)
63/2500	630	2500	1880	250	320	100	5.5	2600×1600×2300	5000
63/3200	630	3200	2700	250	320	100	5.5	3300×1600×2300	6000
80/3200	800	3200	2600	320	380	120	7.5	3300×1700×2300	6800
80/4000	800	4000	3100	320	380	120	7.5	4100×1700×2300	7600
100/3200	1000	3200	2580	320	450	150	7.5	3300×1800×2400	7600
100/4000	1000	4000	3100	320	450	150	7.5	4100×1800×2400	8000
125/3200	1250	3200	2600	320	400	150	7.5	3260×1800×2500	8600
125/4000	1250	4000	3300	320	400	150	7.5	4060×1800×2500	9000
160/3200	1600	3200	2580	320	450	200	11	3300×2000×2600	11400
160/4000	1600	4000	3200	320	450	200	11	4000×2000×2600	13000
160/5000	1600	5000	4100	320	450	200	11	5100×2000×2500	14000
160/6000	1600	6000	4820	320	450	200	11	6100×2000×3200	18000
200/3200	2000	3200	2800	320	465	200	11	3300×2100×2800	13000
200/4000	2000	4000	3200	320	465	200	11	4100×2100×2900	15000
200/5000	2000	5000	4100	320	465	200	11	5100×2100×3000	19000
200/6000	2000	6000	5100	320	465	200	13	6100×2500×3000	23000
200/7000	2000	7000	6100	320	465	200	15	7100×2500×3000	29000
250/4000	2500	4000	3100	350	460	250	18.5	4100×2200×3500	20000
250/5000	2500	5000	4000	350	560	250	18.5	5100×2200×3500	23000
250/6000	2500	6000	5000	350	560	250	18.5	6100×2200×3500	27000
300/5000	3000	5000	4100	400	600	250	22	5100×2600×3500	27000
300/6000	3000	6000	5000	400	600	250	22	6100×2600×4200	30000
300/7000	3000	7000	5620	400	600	250	22	7100×2600×4400	35000
320/4000	3200	4000	3300	400	560	250	22	4060×2570×3760	23000
320/5000	3200	5000	4300	400	560	250	22	5060×2570×3760	27000
320/6000	3200	6000	5300	400	560	250	22	6060×2570×3760	31000
320/7000	3200	7000	5620	400	600	250	22	7100×2600×4400	38000
350/6000	3500	6000	5100	450	680	250	30	6100×2600×4200	33000
350/7000	3500	7000	5620	450	680	250	30	7060×2600×4500	40000
400/3200	4000	3200	2600	350	550	300	30	3300×2700×4000	27000
400/4000	4000	4000	3100	400	620	350	30	4100×2700×4100	31000
400/5000	4000	5000	4000	400	620	350	30	5100×2700×4200	35000
400/6000	4000	6000	4820	400	620	320	30	6100×2750×4200	39000
400/6500	4000	6500	5100	400	620	320	30	6500×2750×4300	44000
500/4000	5000	4000	3100	400	630	320	37	4090×2965×3920	33000
500/5000	5000	5000	4100	400	630	320	37	5100×2965×4400	48000
500/6000	5000	6000	4820	400	630	320	37	6100×3000×4700	53000
500/7000	5000	7000	5620	400	630	320	37	7100×3000×4900	62000
600/6000	6000	6000	4820	400	630	320	37	6050×3000×4900	66000
630/5000	6300	5000	4100	400	710	320	45	5050×3000×4900	68000
630/6000	6300	6000	5100	400	710	320	45	6050×3000×4900	75000
630/7000	6300	7000	6100	400	710	320	45	7050×3000×4900	82000

　　Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
