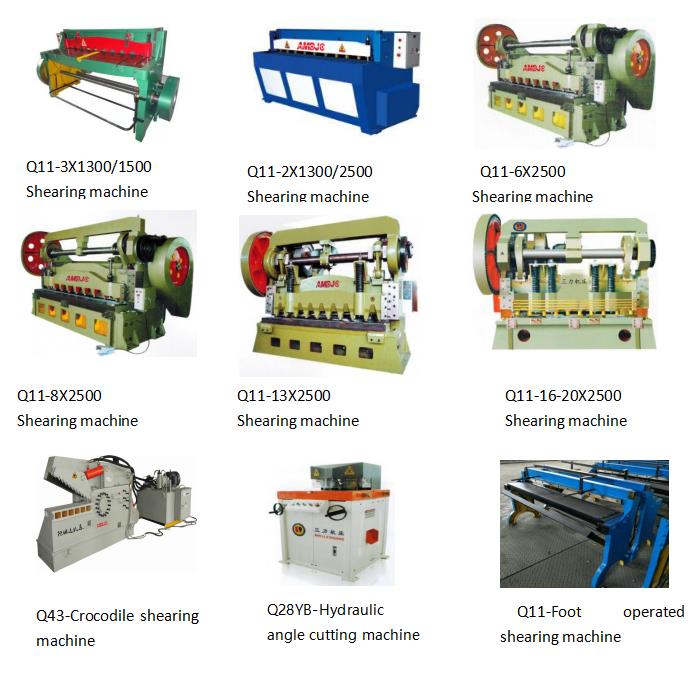

Technical parameter table of Q11 mechanical shearing machine
Product specifications | External dimensions(mm) | Scissorable board thickness(mm) | Scissorable board width(mm) | Number of cuts | shear angle | Workbench height(mm) | Rear blocking distance(mm) | power(kw) | weight(T) |
3×1300 | 2115×1500×1300 | 3 | 1300 | 58 | 2.25 | 800 | 350 | 3 | 1.1 |
3×1500 | 2515×1500×1300 | 3 | 1500 | 58 | 2.25 | 800 | 350 | 3 | 1.3 |
4×2000 | 3200×1500×1600 | 4 | 2000 | 54 | 1.30 | 800 | 500 | 5.5 | 3 |
6.3×2000 | 3180×1765×1500 | 6.3 | 2000 | 40 | 2 | 800 | 500 | 7.5 | 4.3 |
8×2000 | 3180×1765×1550 | 8 | 2000 | 40 | 2 | 800 | 500 | 11 | 4.8 |
4×2500 | 3580×1500×1600 | 4 | 2500 | 54 | 1.30 | 800 | 500 | 5.5 | 3.5 |
6×2500 | 3675×2200×2020 | 6 | 2500 | 40 | 2 | 850 | 500 | 7.5 | 5 |
8×2500 | 3675×2250×2450 | 8 | 2500 | 40 | 2.30 | 850 | 500 | 11 | 5.5 |
13×2500 | 3680×2330×2500 | 13 | 2500 | 30 | 3 | 900 | 500 | 15 | 11 |
16×2500 | 3880×2800×2450 | 16 | 2500 | 30 | 3 | 900 | 500 | 22 | 13 |
20×2500 | 3950×2800×2900 | 20 | 2500 | 25 | 3 | 900 | 500 | 22 | 18.5 |
25×2500 | 4050×2850×2900 | 25 | 2500 | 22 | 3 | 900 | 500 | 37 | 22 |
Note: If the parameters in this table do not match the machine tool data, the actual data of the machine tool should prevail. Our company reserves the right of final interpretation.
