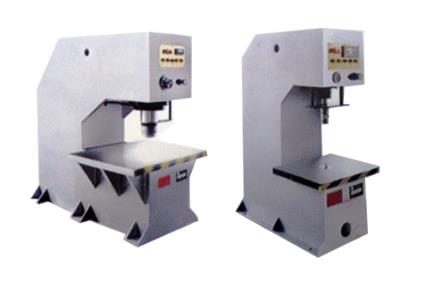

YH41 Single-column Adjusting Press-assembly Hydraulic Press

Send Email

　　Performance Characteristics:

　　This series of hydraulic press has wide range of use, applicable to machine shaping of plastic materials, such as extruding, bending, flanging and drawing. It's also applicable to various pressing molding of various plastic and powder products. Moreover, it can also be used in correcting, pressing and reshaping of products.

　　Main Technical Parameters ofYH41 Single-column Adjusting Press-assembly Hydraulic Press

Item			Unit	YH41-10B	YH41-16	YH41-25B	YH41-40D	YH41-63D	YH41-100E	YH41-160D	YH41-250B
Nominal Pressure			KN	100	160	250	400	630	1000	1600	2500
Maximum Pressure of Liquid			mpa	20	25	21	25	25	25	25	25
Maximum Distance of Slider from Workbench	Correcting		mm	450	450	430	510	550	500	650	560
Maximum Distance of Slider from Workbench	Pressing		mm	630	630	630	710	800	800	1000	1000
Maximum Stroke of Slider			mm	400	400	500	500	500	500	500	500
Highest Speed of Slider Descending			mm/s	50	45	35	40	30	24	20	20
Highest Speed of Slider Return			mm/s	80	100	85	80	70	50	80	70
Work Speed			mm/s	25	20	17	20	15	12	10	10
Depth of Throat			mm	210	250	320	320	320	320	360	325
Size of Workbench	Pressing	Length*Width	mm	410×420	450×500	510×580	560×560	630×600	710×600	800×600	850×660
Size of Workbench	Correcting	Length*Width	mm	1000×180	1000×180	1250×200	1250×200	1600×250	2000×300	2000×25	2500×600
Blanking Die Diameter			mm	140	160	180	200	200	200	200	150
Machine Overall Dimensions	Left to Right		mm	655	735	775	1250	1600	2000	2000	1100
	Front to Back		mm	1160	1355	1480	1660	1750	2000	2000	2000
	Height		mm	2100	2160	2330	2377	2500	2650	2954	3350
Power			KW	4	5.5	5.5	7.5	7.5	11	15	18.5
