2-WC67K-800/9000 hydraulic double machine linkage CNC bending machine

Send Email

Performance characteristics:

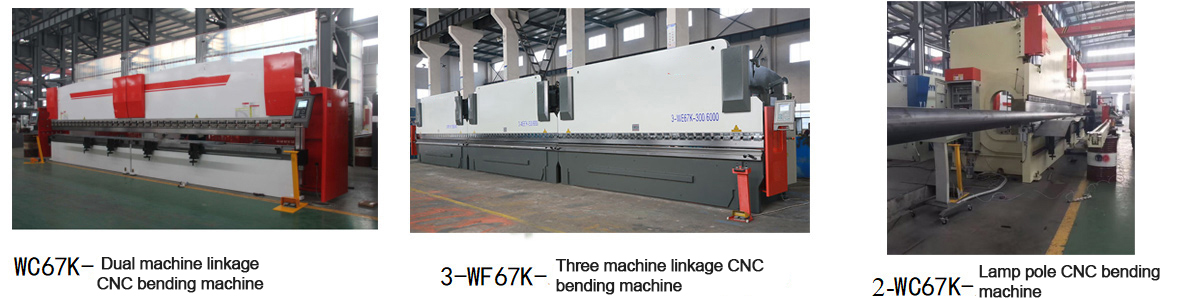

1. 2-WC67K/WF67K series bending machine can realize the linkage of two machines and multiple machines through linkage device;

2. The single machine still has all the high standard configuration performance of WC67K series electro-hydraulic CNC bending machine;

3. The two stand-alone machines are independent from each other, which can be linked or used separately to improve production efficiency;

4. Double click linkage bending machine is applicable to the processing of ultra long workpieces;

5. It is widely used in engineering machinery, lighting poles, pipelines and other industries.

　　Technical parameters of 2-WF67Y dual machine linkage bending machine：

Specification and model	nominal pressure(KN)	Workbench length(mm)	Distance between columns(mm)	throat depth(mm)	Slide stroke(mm)	Maximum opening height between workbench and slider(mm)	Main motor power(KW)	External dimensions(mm) 长×宽×高	weight(kg)
2-100/3200	2×1000	2×3200	2600	320	150	450	2×7.5	2×3740×1585×2670	2×8000
2-160/3200	2×1600	2×3200	2550	320	200	500	2×11	2×3740×2045×3080	2×10200
2-160/3600	2×1600	2×3600	2950	320	200	500	2×11	2×4140×2045×3080	2×11050
2-160/4000	2×1600	2×4000	3350	320	200	500	2×11	2×5530×2435×3650	2×11900
2-160/5000	2×1600	2×5000	4100	500	200	500	2×11	2×5530×2435×3650	2×16800
2-160/6000	2×1600	2×6000	5100	500	200	500	2×11	2×6530×2435×3630	2×23310
2-160/7000	2×1600	2×7000	6100	500	200	500	2×11	2×7530×2435×3630	2×28000
2-200/3200	2×2000	2×3200	2580	320	200	450	2×11	2×3400×2140×2600	2×15000
2-200/4000	2×2000	2×4000	3100	320	200	450	2×11	2×4100×2400×2650	2×17000
2-200/5000	2×2000	2×5000	4100	320	200	450	2×13	2×5100×2450×2700	2×19000
2-200/6000	2×2000	2×6000	5100	320	200	450	2×13	2×6100×2500×2900	2×23000
2-200/7000	2×2000	2×7000	6100	320	200	450	2×15	2×7100×2500×2900	2×29000
2-250/3200	2×2500	2×3200	2700	400	250	560	2×15	2×4000×2250×3660	2×19200
2-250/4000	2×2500	2×4000	3300	400	250	560	2×15	2×4800×2250×3660	2×20000
2-250/5000	2×2500	2×5000	4100	400	250	560	2×15	2×5800×2250×3660	2×22000
2-320/4000	2×3200	2×4000	3300	400	250	560	2×22	2×4060×2570×3760	2×22000
2-320/5000	2×3200	2×5000	4300	400	250	560	2×22	2×5060×2570×3760	2×24510
2-320/6000	2×3200	2×6000	5300	400	250	560	2×22	2×6060×2570×3760	2×27020
2-320/7000	2×3200	2×7000	6300	400	250	560	2×22	2×7060×2570×3760	2×37000
2-400/4000	2×4000	2×4000	3100	400	320	625	2×37	2×4050×3240×3880	2×29950
2-400/5000	2×4000	2×5000	4210	400	320	625	2×37	2×5050×3240×3880	2×37000
2-500/4000	2×5000	2×4000	3100	400	320	630	2×37	2×4090×2965×3920	2×32700
2-500/5000	2×5000	2×5000	4100	400	320	630	2×37	2×5090×2965×3920	2×39750
2-500/6000	2×5000	2×6000	5100	400	320	630	2×37	2×6090×2965×3920	2×46800
2-630/5000	2×6300	2×5000	4100	400	320	710	2×45	2×5050×4910×3980	2×67950
2-630/6000	2×6300	2×6000	5100	400	320	710	2×45	2×6050×4910×3980	2×75000

　　Note: If the parameters in this table do not match the machine tool data, the actual data of the machine tool should prevail. Our company reserves the right of final interpretation.
