JH36 closed type double point high-performance press

Send Email

Performance characteristics:

1. The machine body is made of high-quality steel plate, CNC cutting, CO2 welding structure, with good overall rigidity and beautiful appearance; The machine body adopts trolley type electric furnace annealing or vibration aging to remove stress, and the deformation is small. The closed structure is symmetrical in front and back, eliminating the angular deformation of the open press, and greatly improving the processing accuracy of the stamping parts and the service life of the die.

2. The crankshaft is placed longitudinally, with short fulcrum distance, compact structure and reasonable layout. The unique double axis synchronous reversal mode eliminates the lateral force of the slider on the guide rail and the body, and has strong anti eccentric load capacity, ensuring the smooth operation of the machine tool.

3. The transmission gear is immersed in oil in the gearbox for operation, and the gear surface is grinded for low transmission noise and wear.

4. Pneumatic friction clutch brake, mechanical interlock, safe and reliable, low noise, friction plate is not easy to wear; Domestic clutch of Shanghai "Dingjie" brand or Italian "OMPI" brand shall be selected; The wet clutch is also provided according to the special needs of users.

5. Imported pneumatic external hydraulic overload pump is selected, which has sensitive action, good stability and convenient maintenance.

6. The sliding block guide rail adopts eight side guidance, with long guide rail and stable operation.

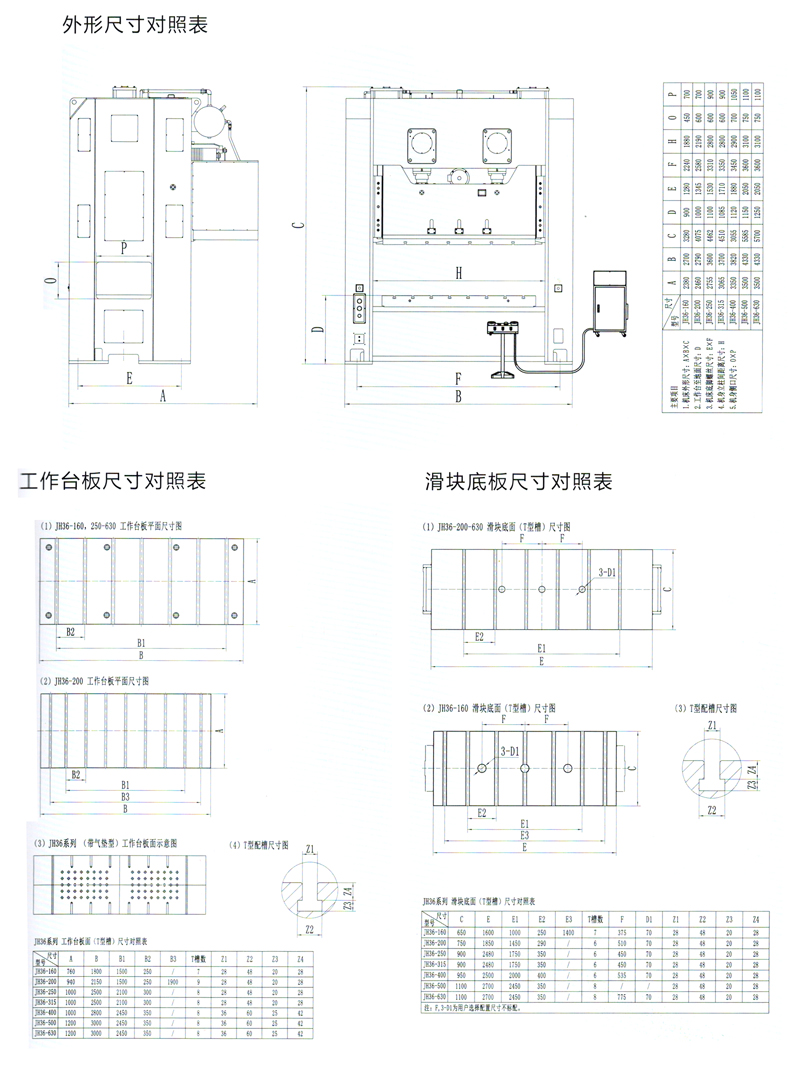

Main technical parameters of JH36 closed double point high-performance press:

Technical Parameter		unit	JH36-160		JH36-200		JH36-250		JH36-315	JH36-400			JH36-500	JH36-630
			L	S	L	S	L	S	L	S	L	S	L	S	L
Sliding block nominal pressure		KN	1600		2000		2500		3150	4000			5000	6300
Ability occurrence location		mm	5	3	7	4	7	4	8	5	9	5	13	13
Slide stroke		mm	200	130	250	150	280	180	280	180	280	200	320	320
Stroke times		次/min	30-45	40-75	25-45	35-60	20-40	30-55	20-35	30-50	20-35	30-45	18-25	18-25
Maximum enclosed height		mm	450	485	500	550	550	600	550	600	600	650	700	700
Closed height adjustment amount		mm	100		110		120		120	130			130	150
Distance between columns		mm	1880		2190		2800		2800	2900			3100	3100
Distance from workbench to ground		mm	900		1000		1100		1085	1120			1140	1250
Workbench size	about	mm	1800		2150		2500		2500	2800			3000	3000
	around	mm	760		940		1000		1000	1000			1200	1200
Bottom size of slider	about	mm	1600		1850		2480		2480	2500			2700	2700
	around	mm	650		750		900		900	950			1100	1100
Body side port size	up and down	mm	450		600		600		600	700			750	750
	around	mm	700		700		900		900	1050			1100	1100
External dimensions	about	mm	2700		2790		3600		3700	3820			4330	4330
	around	mm	2380		2460		2755		3065	3350			3500	3500
	tall	mm	3280		4075		4462		4510	4735			5585	5700
power		KW	15-4P		22-4P		37-4P		45-6P	45-6P			55-4P	75-4P
weight		kg	25500		35000		42000		45000	52000			62000	80000

Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.

Standard configuration:

Dry clutch, hydraulic overload protection device, electric grease lubrication device, manual thin oil lubrication device, sliding block and upper mold balancing device, electronic crankshaft angle indicator, electronic cam controller, electric sliding block adjusting device, programmable controller, sliding block upper stripping device, air source quick connector, dual solenoid valve, movable two handed operation platform shock pad, air blowing, frequency converter, Movable electrical control box.

Selected configuration: (selected by the user, which shall be indicated in the contract)

Wet clutch brake, pneumatic mold pad device, photoelectric safety device, quick mold change device, foot switch, automatic feeding output shaft, preset counter
