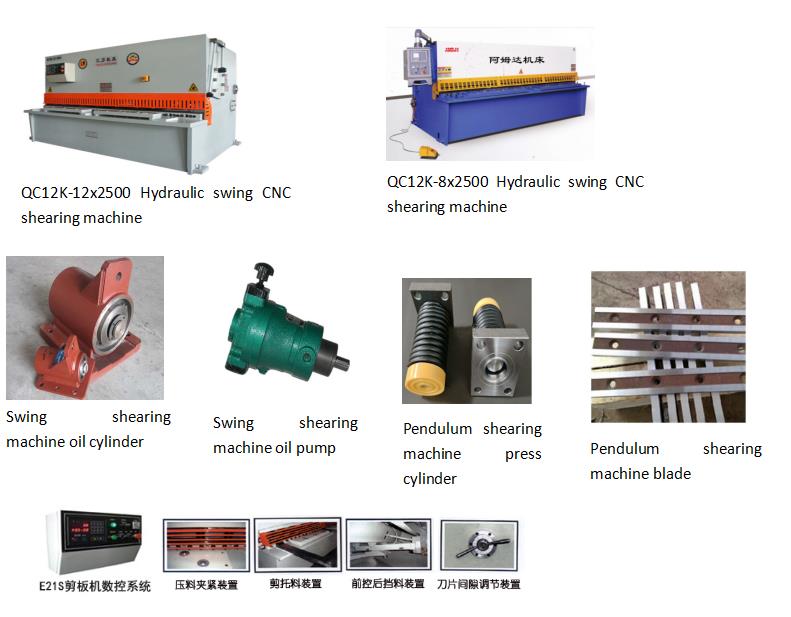

QC12Y Hydraulic Swing-type Digital Readout Plate Shear

Send Email

　　Performance and Features:

　　1. Adopting a fully welded steel structure, it has sufficient strength and rigidity.

　　2. Hydraulic transmission system, safe and reliable operation, beautiful appearance.

　　3. Equipped with a fast and flexible gap adjustment mechanism, it has high cutting accuracy.

　　4. Equipped with a lighting alignment device for easy marking and cutting.

　　5. The size and cutting frequency of the rear material have E21S CNC system and ball screw device.

　　6. The machine tool is equipped with safety barriers on the left, right, and back, and the electrical cabinet is equipped with door opening and power-off devices, as well as emergency switch devices at the front and back, with protective covers and foot switches to ensure safe operation during work.

　　Technical parameter table of QC12K/Y hydraulic swing CNC shearing machine

Product specifications	External dimensions (mm)	Can be cut Plate thickness (mm)	Can be cut Board width (mm)	Plate strength Newton	shear angle	Number of trips/minute	Rear blocking distance(mm)	electric machinery power (kw)	weight （T）
4×2500	2990×1650×1620	4	2500	≤450	1.50	18	500	5.5	5.2
4×3200	3990×1650×1620	4	3200	≤450	1.50	14	500	5.5	6
4×4000	4700×1900×1800	4	4000	≤450	1.50	12	500	7.5	7.9
4×5000	5700×2100×2200	4	5000	≤450	1.50	10	800	7.5	13.5
4×6000	6700×2200×2310	4	6000	≤450	1.50	8	800	7.5	16
4×7000	7680×2600×2800	4	7000	≤450	1.50	6	800	11	25
6×2500	3200×1700×1700	6	2500	≤450	1.50	16	500	7.5	5.5
6×3200	3900×1700×1700	6	3200	≤450	1.50	14	500	7.5	6.5
6×4000	4700×1900×1700	6	4000	≤450	1.50	12	500	7.5	8.5
6×5000	5700×2100×2100	6	5000	≤450	1.50	10	800	11	16.8
6×6000	6700×2200×2200	6	6000	≤450	1.50	8	800	11	20
6×7000	7680×2800×2900	6	7000	≤450	1.50	6	500	18.5	29
8×2500	3200×1700×1700	8	2500	≤450	1.50	14	500	7.5	6.8
8×3200	3900×1700×1700	8	3200	≤450	1.50	12	500	11	7.5
8×4000	4700×1800×1700	8	4000	≤450	1.50	10	500	11	9.2
8×5000	5700×2250×2300	8	5000	≤450	1.50	8	800	15	18.5
8×6000	6700×2400×2300	8	6000	≤450	1.50	6	800	15	23
10×2000	2680×1800×1850	10	2000	≤450	1.50	14	500	13	7
10×2500	3200×1800×1700	10	2500	≤450	1.50	12	500	15	7.5
10×3200	3900×2000×1900	10	3200	≤450	1.50	10	500	18.5	8.5
10×4000	4700×2200×2100	10	4000	≤450	1.50	8	800	18.5	10.5
10×5000	5700×2200×2200	10	5000	≤450	1.50	6	800	18.5	22
10×6000	6700×2500×2450	10	6000	≤450	1.50	6	800	18.5	26
12×2500	3200×2150×2200	12	2500	≤450	1.40	11	600	18.5	10.5

Note: If the parameters in this table do not match the machine tool data, the actual data of the machine tool should prevail. Our company reserves the right of final interpretation.
